Sun control film Titan 35 medium exterior
36,90 €
- ✔️ Sun protection film with 57% heat rejection
- ✔️ Medium mirror effect on the exterior film side
- ✔️ Inside: Non-reflective view in medium titanium
- ✔️ Top compromise between sun control & daylight
- ✔️ Perfect for residential & commercial buildings
- Description
- Additional information
- Reviews (0)
- Ordering
- Film sample
- Datasheet
Description
Top compromise between sun control and daylight
The sun control film Titan 35 medium exterior is self-adhesive and is installed on the exterior window side. It has a transparent tint in a medium titanium color, ensuring a pleasant level of daylight transmission. While providing a permanently clear view to the outside, it blocks 57% of unpleasant heat on the outside. The flat glass film thus offers a very good compromise between sun control and daylight.
Another advantage of the high-performance film is the integrated glare reduction, which protects the room from bright sunlight. Eye strain when watching TV or working on a PC, laptop, or monitor is now a thing of the past. The surface of the heat rejection film is scratch-resistant and finished with a high-quality nano-coating for easy cleaning. The long durability of the high-quality film guarantees long-term sun protection for windows and glass panes.
Dual reflective for an inconspicuous interior view
✔ The Titan 35 model is a dual reflective high-performance film with reduced external and low internal light reflections.

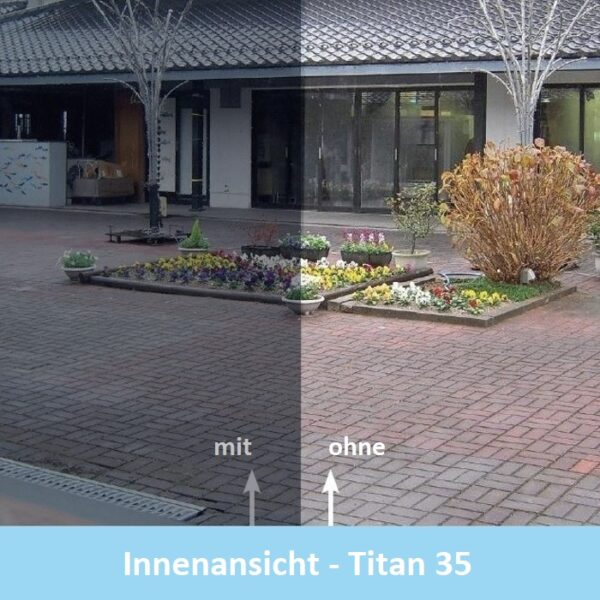

✔ The titanium color ensures a pleasantly inconspicuous appearance when viewed to the outside and preserves the ambience.

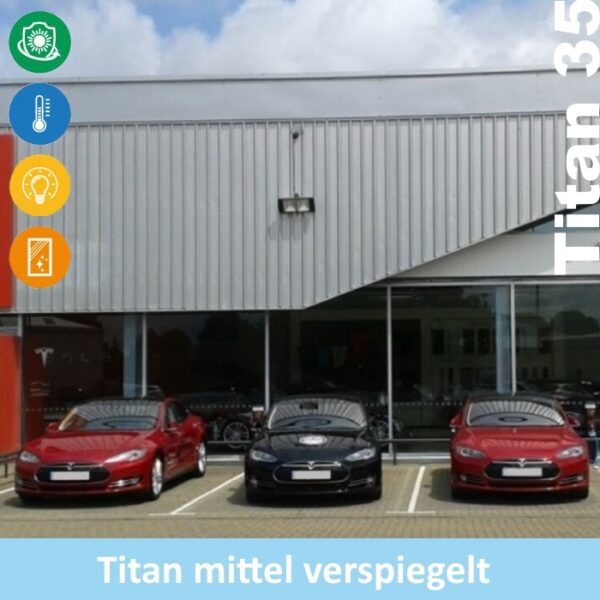

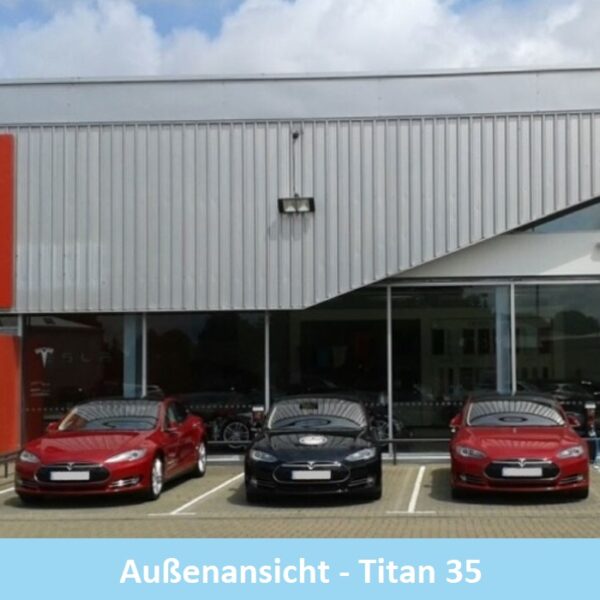

✔ The flat glass film ensures a modern external appearance of the building with a reduced reflection effect.
Sun protection ensures improved energy efficiency
The self-adhesive sun control film is weather-resistant and therefore suitable for outdoor installation. It has a very good heat control value of 57% and provides 99% UV protection. The interior is protected against premature fading caused by sunlight. Interior spaces are kept pleasantly cool and heat build-up in the building is efficiently reduced. Energy and electricity consumption for air conditioning systems can be permanently reduced. The energy efficiency of the installed window glazing is sustainably increased.
Technical and optical film characetristics
| Material: | Weather-resistant polyester film with nano-coating, scratch-resistant, medium-colored titanium |
| Quality assurance: | ISO 9001:2008 certified manufacturing process |

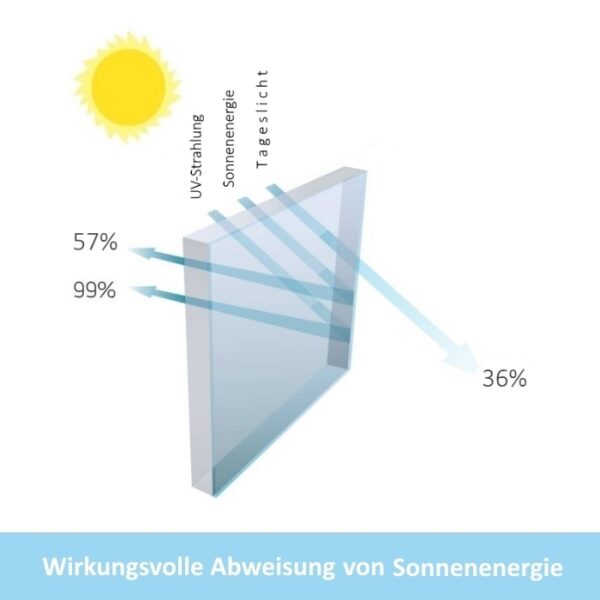

| Heat protection: | 57% heat rejection after installation of the flat glass film |
| Daylight: | 36% light transmission, 99% UV protection |
| Solar energy: | 31% transmission, 26% reflection, 44% absorption |
| G value: | 0.43 degrees of solar energy enter the room |
| Anti-glare: | The window film reduces sun glare by 61% |
*All values are manufacturer values and apply to single glazing
Long durability and manufacturer’s guarantee
The sun control film has a durability of 10 years or more when used outdoors on vertical glazing (normal Central European climate). When attached to slanted glazing outdoors, the durability is reduced accordingly due to the higher environmental impact.
Regardless of the long durability, a manufacturer’s guarantee of 5 years for vertical and 3 years for inclined glass surfaces is granted (in the fifth year 30% of the film value). The guarantee applies to peeling, yellowing and demetallization of the high-performance film if the edges of the film are sealed all around with silicone.
Retrofitting the window film in just a few steps
The bubble-free retrofitting of the window film is carried out using the so-called wet adhesive process. Thoroughly clean the window pane to be coated and spray it with some installation fluid. Remove the protective film on the back, spray the adhesive side and attach it to the window. Using a squeegee, smooth everything out from the middle without any bubbles and wipe dry, and you’re done. Any white discoloration of the adhesive will disappear within a few days.
Just shop the fitting accessories online
• Up to 2.5 sqm we recommend the DIY accessory set worth 3.90 euros. It is included free of charge.
• From 2.5 sqm just order the installation material foil size depending in our asseccories sortiment.
• Detailed installation instructions for installing the film are shipped with each delivery for free.
Additional information
| Weight | 1 kg |
|---|---|
| Installation | exterior |
| Purpose | sun control, privacy protection, glare reduction, uv-filter, energy saving |
| Applicability | single-pane-glazing, double-pane-glazing without thermal insulation |
| Material | metallized polyester, REACH compliant |
| Optics | dual reflective |
| Design | medium mirrored |
| Surface | nano coating for easy cleaning |
| Adhesive | polyacrylate, pressure sensitive, removable without residue |
| Cover | transparent polyesterfilm, removable |
| Temperature | during installation from +5°C to +40°C |
| Fire behavior | B – s1, d0 flame retardant according DIN EN 13501 |
| Roll width | 1,22 m width – 31,0 m length, 1,52 m width – 31,0 m length |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 2 years at 18-22°C and 45-55% relative humidity |
| Brand | von Kuester KG |
| Delivery time | 1-3 working days |
| EAN | 4403050152006 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
Download data sheet for free
The technical data sheet is available for free download here:
Sonnenschutzfolie-Titan-35 Compare products
