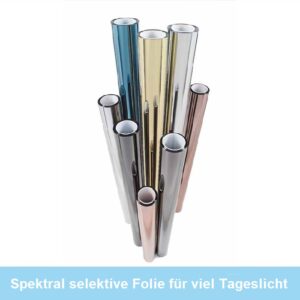

Sun control film OptiLite 75 Xtra Light blue exterior
72,90 €

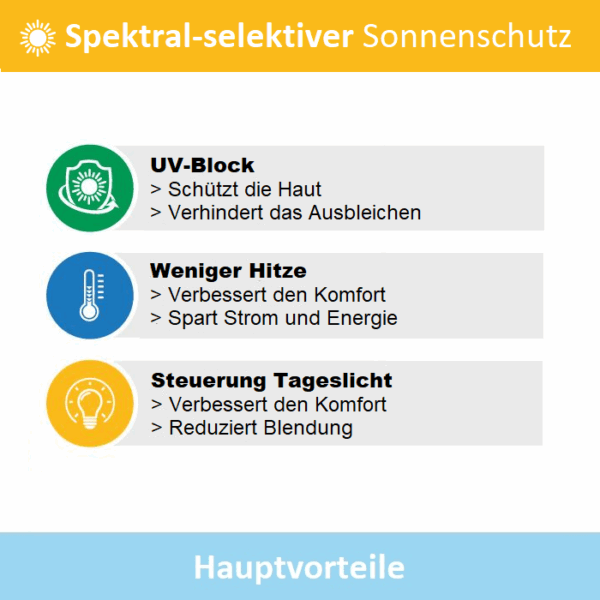

- ✔️ Sun protection film with 46% heat reduction
- ✔️ High light transmission for maximum daylight
- ✔️ Light blue appearance without mirror effects
- ✔️ Creates a modern exterior building appearance
- ✔️ Ideal for rooms that need to remain bright
- Description
- Additional information
- Reviews (0)
- Ordering
- Film sample
- Datasheet
Description

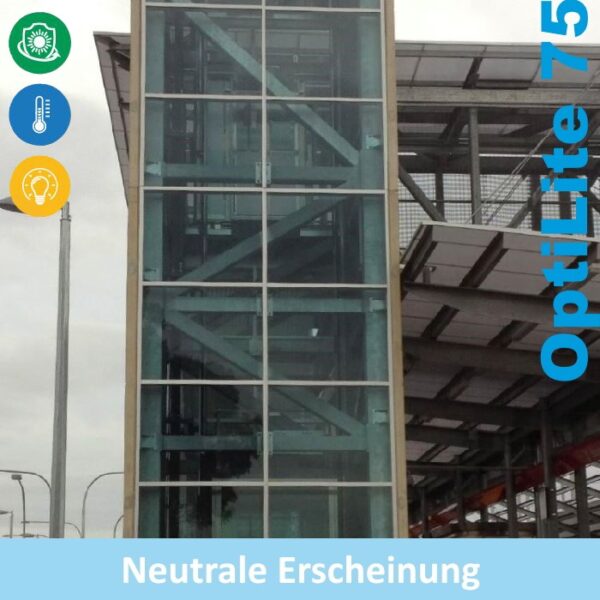

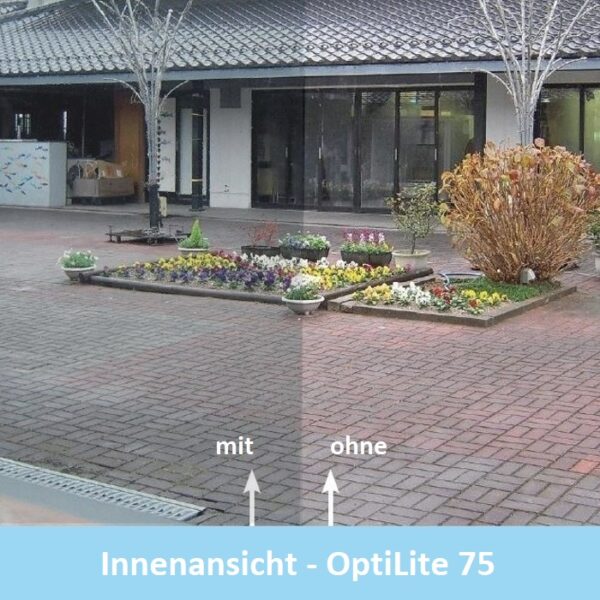

OptiLite 75 Xtra: Sun control for lots of daylight
The sun control film OptiLite 75 Xtra light blue exterior is self-adhesive and is installed on the exterior window side. It ensures lots of light inside rooms and an effective heat protection. The spectrally selective film enables optimal room temperatures and almost unrestricted daylight. The flat glass film is self-adhesive and is applied to the outside. The OptiLite 75 Xtra model is characterized above all by its natural coloring without mirror effects. High energy and electricity costs in air-conditioned offices, hotels and convention centers can be reduced. This means that the purchase of the high-performance film pays off after a short period of time. The self-adhesive flat glass film offers sustainable sun protection for windows and thus ensures long-term preservation of the value of your property.

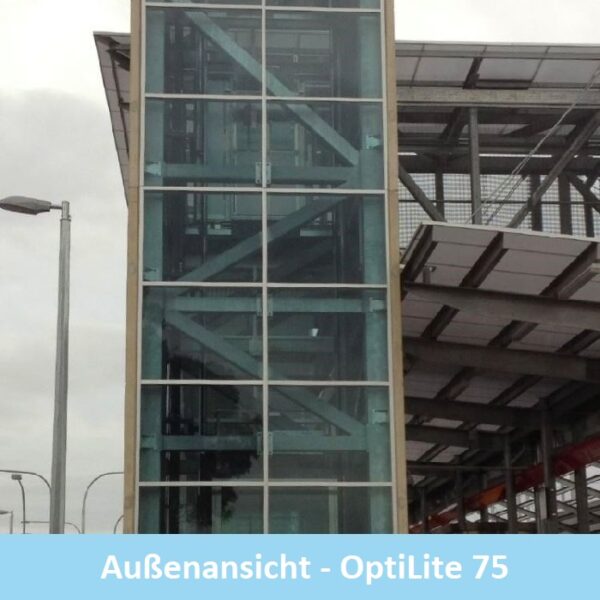

Light blue color for a modern buiding appearance
✔ The basis for success is a highly effective combination of filter layers with the latest nanoparticle technology.
✔ Coated windows and glass surfaces fit neutrally into the overall look of the building without reflections.
✔ The film structure without metal ensures fewer reflections, undisturbed mobile phone reception and no corrosion.
✔ The scratch-resistant surface of the film ensures easy cleaning with conventional glass cleaning agents.
Technical and optical detail informations
| Material: | Weather-resistant polyester film, scratch-resistant, light blue |
| Quality assurance: | ISO 9001:2008 certified manufacturing process |
| Heat protection: | 46% heat shielding after applying the flat glass film |

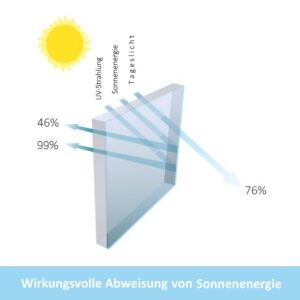

| Daylight: | 76% light transmission, 99% UV protection |
| Solar energy: | 39% transmission, 8% reflection, 53% absorption |
| G value: | 0.54 degrees of solar energy enter the room |
| Anti-glare: | The window film reduces sun glare by 16% |
*All values are manufacturer values and apply to single glazing
Long durability and manufacturer’s guarantee
The sun control film has a durability of 10 years or more when used outdoors on vertical glazing (normal Central European climate). When installed to slanted glazing outdoors, the durability is reduced accordingly due to the higher environmental impact.
Regardless of the long durability, a manufacturer’s guarantee of 5 years for vertical and 2.5 years for inclined glass surfaces is granted. The guarantee applies to peeling and yellowing of the high-performance film if the edges of the film are sealed all around with silicone.
The installation is done in a few steps
The window film is installed without bubbles using the so-called wet adhesive process. Thoroughly clean the surface to be glued and spray it with some installation fluid. Remove the protective film on the back, spray the adhesive side and attach it to the window. Using a squeegee, smooth everything out from the middle without any bubbles and wipe dry, and you’re done. Any white discoloration of the adhesive will disappear within a few days.
Just order the fitting accessories online
• Up to 2.5 sqm we recommend the DIY accessory set worth 3.90 euros. It is included free of charge.
• From 2.5 sqm just order the installation material foil size depending in our asseccories sortiment.
• Detailed installation instructions for installing the film are shipped with each delivery for free.
Additional information
| Weight | 1 kg |
|---|---|
| Installation | exterior |
| Purpose | sun control, uv-filter, energy saving |
| Applicability | single-pane-glazing, double-pane-glazing without thermal insulation |
| Material | polyester without metall, REACH compliant |
| Optics | spectrally selective |
| Design | not mirrored |
| Film thickness | 0,058 mm |
| Surface | special hardened, easy to clean |
| Adhesive | polyacrylate, pressure sensitive, removable without residue |
| Cover | transparent polyesterfilm, removable |
| Temperature | during installation from +5°C to +40°C |
| Fire behavior | B – s1, d0 flame retardant according DIN EN 13501 |
| Roll width | 1,52 m width – 31,0 m length |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 2 years at 18-22°C and 45-55% relative humidity |
| Brand | von Kuester KG |
| Delivery time | 1-3 working days |
| EAN | 4403051912005 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
Download data sheet for free
The technical data sheet is available for free download here:
Sonnenschutzfolie-OptiLite-75-Xtra Compare products

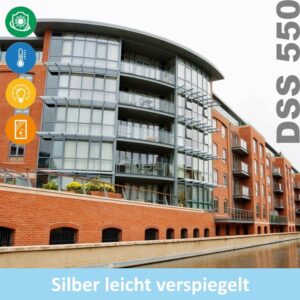

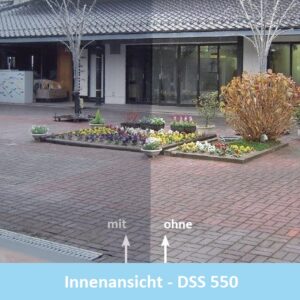

Sun control film DSS 550 Silver light exterior
