Sun control film IB 340 Bronze medium
37,90 €
- ✔️ Sun protection film with 70% heat reduction
- ✔️ Reduced mirror effect on the exterior film side
- ✔️ Inside: Free transparency in medium bronze tint
- ✔️ Top compromise between sun control & daylight
- ✔️ Perfect for residential & commercial buildings
- Description
- Additional information
- Reviews (0)
- Ordering
- Film sample
- Datasheet
Description
Good compromise between sun control and daylight
The sun control film IB 340 bronze online is self-adhesive and is installed on the interior window side. It ensures efficient heat rejection and pleasantly bright daylight transmission. The high-performance film thus offers an excellent compromise between sun protection and daylight. High comfort and a cozy interior atmosphere are immediately noticeable. The strong performance of the window film is immediately noticeable. Energy expenditure and electricity costs for building air conditioning can be saved permanently. The energy efficiency of the installed window panes is sustainably improved.
With 99% UV protection, interior items are protected against premature fading damage. The flat glass film has a scratch-resistant surface, which is a prerequisite for simple and easy cleaning with conventional glass cleaning products.
In contrast to pleated blinds and blinds, the flat glass film is completely user-free and maintenance-free (no mechanics).
Medium bronze design for a reduced mirror effect

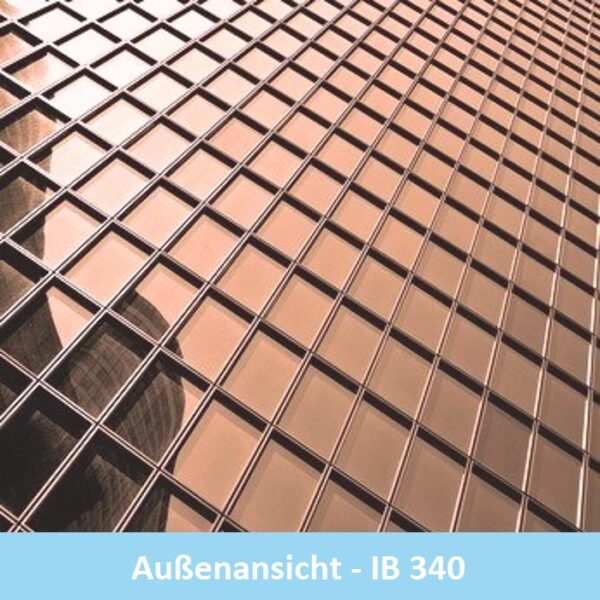

✔ The solar control film has a pleasantly reduced mirror effect in bronze when viewed from the outside.
✔ When viewed from the inside, a medium tint can be seen on the window for an undisturbed view.
✔ The medium-strong bronze color ensures that the film has permanently good daylight permeability.
Technical and optical detail informations
| Material: | Scratch-resistant polyester film, sputtered with metals, medium bronze |
| Quality assurance: | ISO 9001:2008 certified manufacturing process |

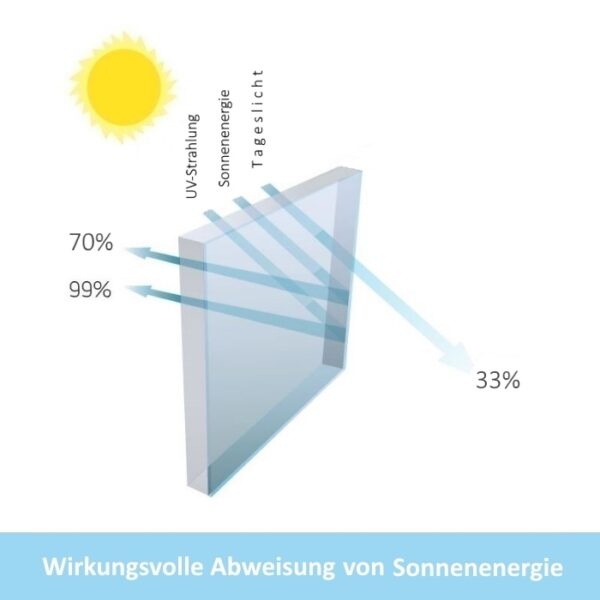

| Heat protection: | 70% heat rejection after applying the flat glass film |
| Daylight: | 33% light transmission, 99% UV block |
| Solar energy: | 21% transmission, 44% reflection, 35% absorption |
| G value: | 0.30 degrees of solar energy enter the room |
| Anti-glare: | The window film reduces sun glare by 63% |
| Manufacturer’s warranty: | 10 years for peeling, yellowing, demetallization of the quality film |
*All values are manufacturer values and apply to single-pane glazing
Installation of the window film in a few steps
The window film is installed without bubbles using the so-called wet adhesive process. Thoroughly clean the surface to be coated and spray it with some installation fluid. Remove the protective film on the back, spray the adhesive side and attach it to the window. Using a squeegee, smooth everything out from the middle without any bubbles and wipe dry, and you’re done. Any white discoloration of the adhesive will disappear within a few days.
Just shop the fitting accessories online
• Up to 2.5 sqm we recommend the DIY accessory set worth 3.90 euros. It is included free of charge.
• From 2.5 sqm just order the installation material foil size depending in our asseccories sortiment.
• Detailed installation instructions for the window film are shipped with each order for free.
Additional information
| Weight | 1 kg |
|---|---|
| Installation | interior |
| Purpose | sun control, privacy protection, glare reduction, uv-filter, energy saving |
| Applicability | single-pane-glazing, double-pane-glazing without thermal insulation |
| Material | metallized polyester, REACH compliant |
| Optics | reflective |
| Design | medium mirrored |
| Film thickness | 0,069 mm |
| Surface | special hardened, easy to clean |
| Adhesive | polyacrylate, pressure sensitive, removable without residue |
| Cover | transparent polyesterfilm, removable |
| Temperature | during installation from +5°C to +40°C |
| Fire behavior | B – s1, d0 flame retardant according DIN EN 13501 |
| Roll width | 1,52 m width – 31,0 m length |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 2 years at 18-22°C and 45-55% relative humidity |
| Brand | von Kuester KG |
| Delivery time | 1-3 working days |
| EAN | 4403050072007 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
Download data sheet for free
The technical data sheet is available for free download here:
