Sun control film E-lite 70 transparent
Original price was: 76,90 €.71,90 €Current price is: 71,90 €.
- ✔️ Sun protection film with 52% heat rejection
- ✔️ High light transmission for plenty of daylight
- ✔️ Transparent design without mirror effects
- ✔️ Neutral for an unchanged building optic
- ✔️ Suitable for installation on listed buildings
- Description
- Additional information
- Reviews (0)
- Ordering
- Film sample
- Datasheet
Description
Sun control film E-Lite 70 transparent for a clear view
The sun control film E-lite 70 transparent is self-adhesive and is installed on the interior window side. It combines a clear view with effective heat protection. Listed buildings in particular can benefit from an unchanged building appearance due to their neutral appearance. The neutral high-performance film ensures maximum daylight and minimal heat development. The innovative solar control ensures that rooms do not heat up uncomfortably in summer. The room temperature becomes comfortable and well-tempered. Energy consumption and running costs for air conditioning in air-conditioned offices, hotels and conference centers can be permanently reduced. The energy efficiency of the installed window glazing is sustainably improved.
PRESTIGE-promising solar control for interior installation
✔ The guarantee for the clear solar control on the window is an effective nanoparticle technology without metal.
✔ A highly effective combination of successive filter layers according to the actual modern production standards.
✔ The product is therefore a first-class alternative to most interior installation PRESTIGE window films on the market.
✔ The metal-free structure of the film ensures fewer reflections, undisturbed mobile phone reception and no corrosion.
All technical and optical details at a glance
| Material: | Weather-resistant polyester film, scratch-resistant, transparent |
| Quality assurance: | ISO 9001:2008 certified manufacturing process |

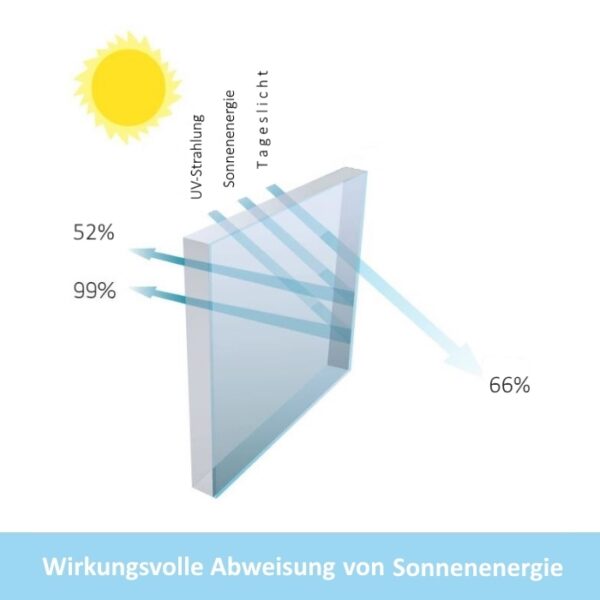

| Heat protection: | 52% heat rejection after applying the flat glass film |
| Daylight: | 66% light transmittance, 99% UV block |
| Solar energy: | 36% transmission, 23% reflection, 41% absorption |
| G value: | 0.48 degrees of solar energy enter the room |
| Anti-glare: | The self-adhesive film reduces sun glare by 27% |
| Manufacturer’s warranty: | 10 years for peeling and yellowing of the window film |
*All values are manufacturer values and apply to single glazing
Retrofitting the window film in a few steps
The bubble-free retrofitting of the window film is carried out using the so-called wet adhesive process. Thoroughly clean the surface to be coated and spray it with some installation fluid. Remove the protective film on the back, spray the adhesive side and attach it to the window. Using a squeegee, smooth everything out from the middle without any bubbles and wipe dry, and you’re done. Any white discoloration of the adhesive will disappear within a few days.
Just shop the fitting accessories online
• Up to 2.5 sqm we recommend the DIY accessory set worth 3.90 euros. It is included free of charge.
• From 2.5 sqm just order the installation material foil size depending in our asseccories sortiment.
• Detailed installation instructions for the window film are shipped with each order for free.
Additional information
| Weight | 1 kg |
|---|---|
| Installation | interior |
| Purpose | sun control, uv-filter, energy saving |
| Applicability | single-pane-glazing, double-pane-glazing without thermal insulation |
| Material | polyester without metall, REACH compliant |
| Optics | spectrally selective |
| Design | not mirrored |
| Film thickness | 0,058 mm |
| Surface | special hardened, easy to clean |
| Adhesive | polyacrylate, pressure sensitive, removable without residue |
| Cover | transparent polyesterfilm, removable |
| Temperature | during installation from +5°C to +40°C |
| Fire behavior | B – s1, d0 flame retardant according DIN EN 13501 |
| Roll width | 1,52 m width – 31,0 m length |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 2 years at 18-22°C and 45-55% relative humidity |
| Brand | von Kuester KG |
| Delivery time | 1-3 working days |
| EAN | 4282345527633 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
Download data sheet for free
The technical data sheet is available for free download here:
