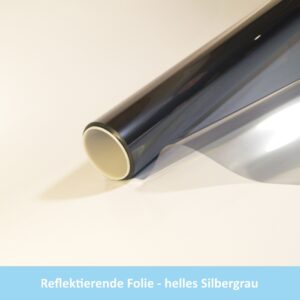

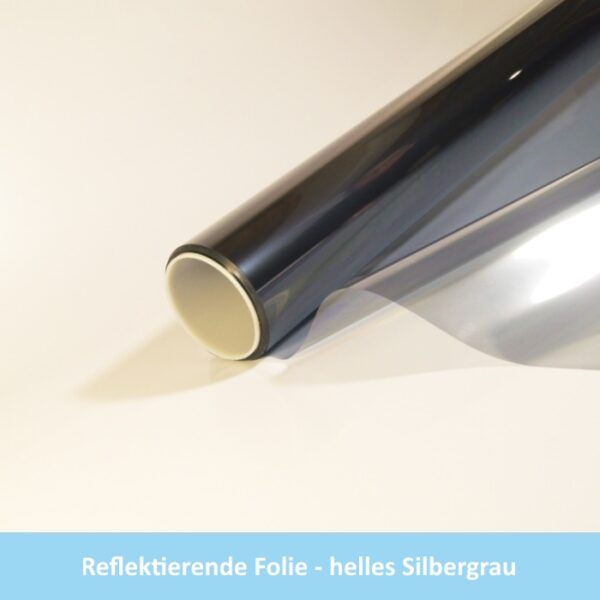

Sun control film DSS 550 Silver light exterior
Original price was: 45,90 €.43,60 €Current price is: 43,60 €.
- ✔️ Sun protection film with 54% heat reduction
- ✔️ Light mirror effect on the exterior film side
- ✔️ Inside: Free transparency in light silver grey
- ✔️ High light transmission for lots of daylight
- ✔️ Ideal for rooms that need to remain bright
- Description
- Additional information
- Reviews (0)
- Ordering
- Film sample
- Datasheet
Description
Sun control film light grey for lots of daylight

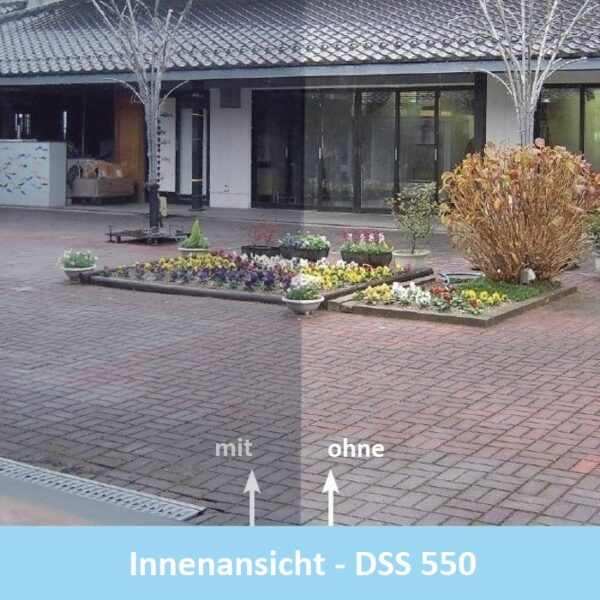

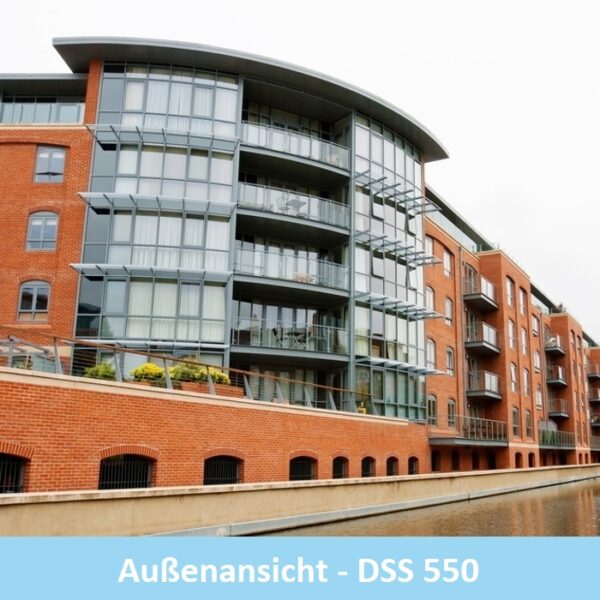

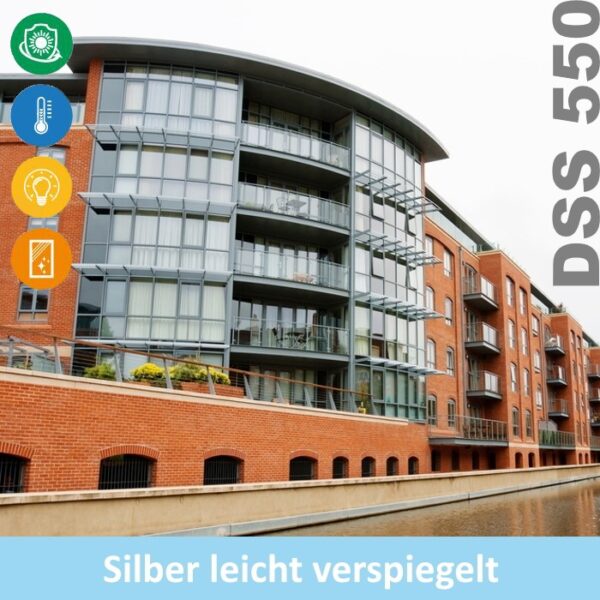

The sun control film DSS 550 silver light exterior is self-adhesive and is installed on the exterior window side. It adapts elegantly to the look of the building facade. When viewed from the outside, a slight mirror effect is noticeable to the human eye. With its neutral color in light silver grey, the solar control film has an excellent interior view. The elegant color ensures very good daylight permeability and enables light-flooded interiors. It is therefore particularly suitable for projects where lots of daylight and pleasant sun protection are important.
Solar control for a pleasant heat reduction
Enjoy more living comfort and indoor climate with a permanent clear view of the outside. The flat glass film repels 54% of warm solar energy on the window when exposed to sunlight. The heat development in the building is permanently reduced. Energy and electricity consumption for air conditioning systems can be permanently reduced. The energy efficiency of the installed window glazing is sustainably improved.
The high-performance film was specially developed for exterior installation. It has a scratch-resistant surface, which is a prerequisite for long durability and easy cleaning with conventional glass cleaning products.
Technical and optical characteristics
| Material: | Weather-resistant polyester film, aluminum-coated, scratch-resistant |
| Quality assurance: | ISO 9001:2008 certified manufacturing process |

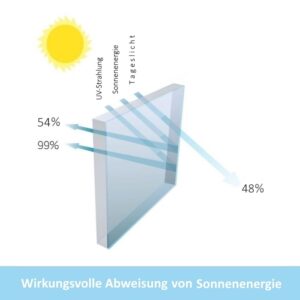

| Heat protection: | 54% heat rejection after applying the flat glass film |
| Daylight: | 48% light transmission, 98% UV block |
| Solar energy: | 37% transmission, 30% reflection, 33% absorption |
| G value: | 0.46 degrees of solar energy enter the room |
| Anti-glare: | The window film reduces sun glare by 46% |
*All values are manufacturer values and apply to single glazing
Long durability and manufacturer’s guarantee
The solar control film has a durability of 10 years or more when used on vertical glazing outdoors (normal Central European climate). When attached to slanted glazing outdoors, the durability is reduced accordingly due to the higher environmental impact.
Regardless of the long durability, a manufacturer’s guarantee of 4 years for vertical and 3 years for inclined glass surfaces is granted. The guarantee applies to peeling, yellowing and demetallization of the high-performance film if the edges of the film are sealed all around with silicone.
Installation of the window film in a few steps
The window film is installed without bubbles using the so-called wet adhesive process. Thoroughly clean the surface to be coated and spray it with some installation fluid. Remove the protective film on the back, spray the adhesive side and attach it to the window. Using a squeegee, smooth everything out from the middle without any bubbles and wipe dry, and you’re done. Any white discoloration of the adhesive will disappear within a few days.
Just buy the fitting accessories online
• Up to 2.5 sqm we recommend the DIY accessory set worth 3.90 euros. It is included free of charge.
• From 2,5 sqm just order the installation material foil size depending in our asseccories sortiment.
• Detailed installation instructions for installing the film are shipped with each delivery for free.
Additional information
| Weight | 1 kg |
|---|---|
| Installation | exterior |
| Purpose | sun control, glare reduction, uv-filter |
| Applicability | single glazing (one pane) insulation glazing (two- or three panes), thermal insulation glazing (two panes with thermal insulation), restricted on solar control glazing (two panes) |
| Material | metallized polyester, REACH compliant |
| Optics | reflective |
| Design | slightly mirrored |
| Film thickness | 0,069 mm |
| Surface | special hardened, easy to clean |
| Adhesive | polyacrylate, pressure sensitive, removable without residue |
| Cover | transparent polyesterfilm, removable |
| Temperature | during installation from +5°C to +40°C |
| Fire behavior | B – s1, d0 flame retardant according DIN EN 13501 |
| Roll width | 1,52 m width – 31,0 m length |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 2 years at 18-22°C and 45-55% relative humidity |
| Delivery time | 1-3 working days |
| Brand | von Kuester KG |
| EAN | 4403050132008 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
Download data sheet for free
The technical data sheet is available for free download here:
Sonnenschutzfolie-DSS-550 Compare products
