Sun control film DSS 220 Silver mirrored exterior
23,80 €
- ✔️ Sun protection film with 81% heat reduction
- ✔️ Highly reflective for maximum sun control
- ✔️ Inside: Free transparency in dark silver grey
- ✔️ Best-selling sun control for exterior installation
- ✔️ Ideal for south-facing windows with lots of sun
- Description
- Additional information
- Reviews (0)
- Ordering
- Film sample
- Datasheet
Description
Ideally suited for south-facing window panes
The sun control film DSS 220 silver mirrored exterior is self-adhesive and is installed to the exterior side of window panes. It has a transparent color in a dark silver grey tint. The high-performance film is particularly suitable for window panes that are located on the south side of the house. The brightness on this side of the building ideally compensates for the loss of light caused by the sun control film. This ensures a sufficiently high level of daylight permeability.

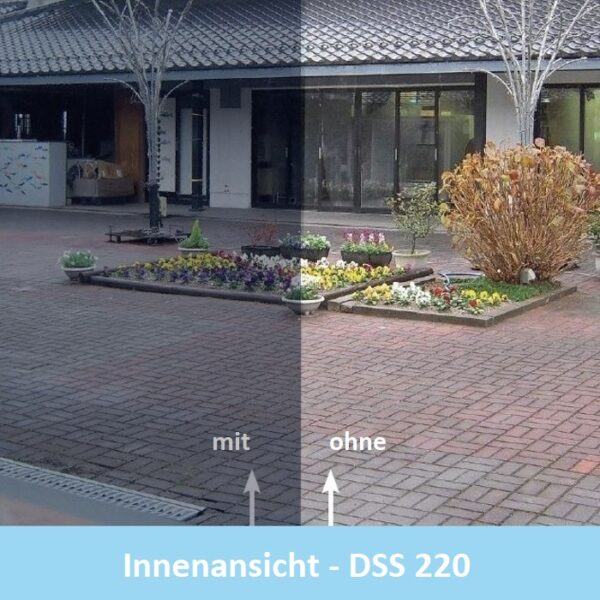

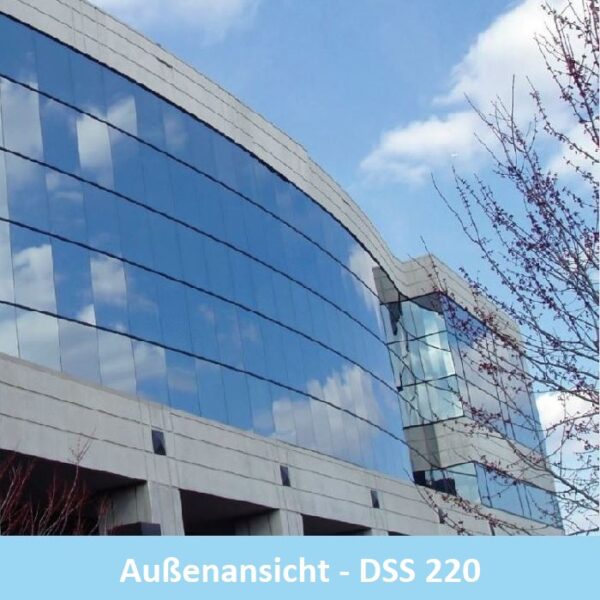

The mirror effect also provide elegant privacy protection. It is not possible to see from outside in daylight. A permanent clear view of the outside is ensured from the inside.
Mirrored sun control for maximum efficiency
The mirrored appearance ensures maximum rejection of heat, sun glare and UV rays. Once installed, the room temperatures can be permanently reduced. The guarantee for the improved indoor climate is 81% rejected solar energy. Air conditioning systems reach the preferred temperature in even less time, they run less often and for less time. The improved energy efficiency of the window panes leads to reduced heat development in the building. In this way, energy consumption and electricity costs for air conditioning systems can be saved permanently.
Best-selling solar control film for exterior use
The flat glass film is permanently weather-resistant and therefore ideal for exterior installation. The scratch-resistant surface is a prerequisite for easy cleaning with conventional glass cleaning products. Furthermore, the innovative sun protection for windows is completely user-free and maintenance-free. Its excellent workmanship makes this window film one of the best-selling solar control films for exterior use.
Technical and optical characteristics
| Material: | Weather-resistant aluminum-coated polyester film, scratch-resistant, silver-grey mirrored |
| Quality assurance: | ISO 9001:2008 certified manufacturing process |
| Heat protection: | 81% heat shielding after applying the flat glass film |
| Daylight: | 17% light transmission, 99% UV protection |
| Solar energy: | 12% transmission, 63% reflection, 25% absorption |
| G value: | 0.19 degrees of solar energy enter the room |
| Anti-glare: | The window film reduces sun glare by 81% |
*All values are manufacturer values and apply to single glazing
Long durability and manufacturer’s guarantee
The coating has a durability of 10 years or more when installed on vertical glass panes (normal Central European climate). When coated to slanted glazing outdoors, the durability is reduced accordingly due to the higher environmental impact.
Regardless of durability, the DSS 220 comes with a manufacturer’s guarantee of 7 years for vertical and 4 years for inclined glass surfaces. The guarantee refers to peeling, yellowing and demetallization when the edges of the film are sealed with silicone.
Installation of the window film in a few steps
The window film is installed without bubbles using the so-called wet adhesive process. Clean the surface to be coated and spray it with some installation fluid. Remove the protective film on the back, spray the adhesive side and attach to the window. Using a squeegee, smooth everything out from the middle without any bubbles and wipe dry, and you’re done. Any white discoloration of the adhesive will disappear within a few days.
Just shop the fitting accessories online
• Up to 2.5 sqm we recommend the DIY accessory set worth 3.90 euros. It is included free of charge.
• From 2,5 sqm just order the installation material foil size depending in our asseccories sortiment.
• Detailed installation instructions for installing the film are shipped with each delivery for free
Additional information
| Weight | 1 kg |
|---|---|
| Installation | exterior |
| Purpose | sun control, privacy protection, glare reduction, uv-filter, spy mirror, energy saving |
| Applicability | single glazing (one pane) insulation glazing (two- or three panes), thermal insulation glazing (two panes with thermal insulation), restricted on solar control glazing (two panes) |
| Material | metallized polyester, REACH compliant |
| Optics | reflective |
| Design | highly mirrored |
| Film thickness | 0,069 mm |
| Surface | special hardened, easy to clean |
| Adhesive | polyacrylate, pressure sensitive, removable without residue |
| Cover | transparent polyesterfilm, removable |
| Fire behavior | B – s1, d0 flame retardant according DIN EN 13501 |
| Temperature | during installation from +5°C to +40°C |
| Roll width | 0,91 m Premium, 1,22 m Premium, 1,52 m Premium |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 2 years at 18-22°C and 45-55% relative humidity |
| Delivery time | 1-3 working days |
| Brand | von Kuester KG |
| EAN | 4403050172004 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
Download data sheet for free
The technical data sheet is available for free download here:
Sonnenschutzfolie-DSS-220 Compare products
