Sun control film DIB 210 Bronze mirrored exterior
45,90 €
- ✔️ Sun protection film with 83% heat reduction
- ✔️ Highly reflective for maximum sun control
- ✔️ Inside: Transparency in dark bronze tone
- ✔️ Upgrade with an elegant visual statement
- ✔️ Ideal for south windows with lots of sun
- Description
- Additional information
- Reviews (0)
- Ordering
- Film sample
- Datasheet
Description
Sun control in bronze – ideal for south windows
The sun control film DIB 210 Bronze mirrored exterior is self-adhesive and is installed on the exterior window side. It bathes the glass surface in a warm color of dark bronze. It is therefore ideal for buildings with south-facing windows. The brightness on this side of the building ideally compensates for the loss of light caused by the sun protection film. This ensures a sufficiently high level of daylight permeability.

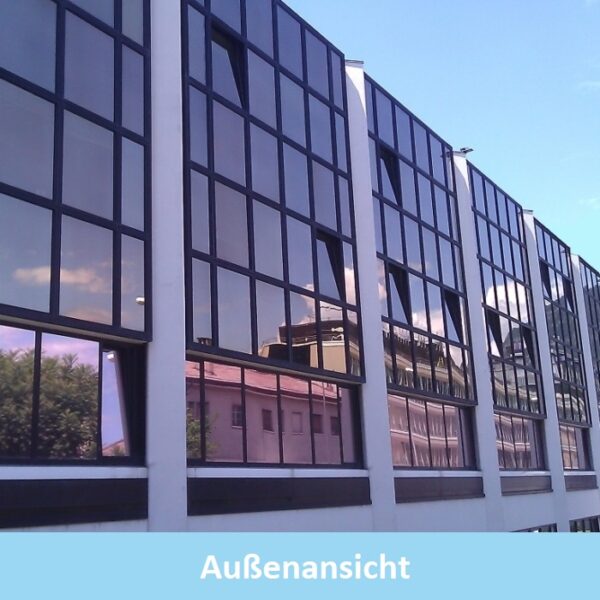

The mirror effect on the outside also provides elegant privacy protection. If there is a permanent clear view of the outside, no insight is possible during the day. The window film combines a clear visual statement with effective sun protection. It is therefore ideal for private and commercial solar control projects.
Strong mirror effect for maximum energy efficiency
The strong mirror coating on the outside ensures a reduction in heat development on the window by a powerful 83%. The room temperature can be permanently reduced after installing the window film. Living climate and room comfort are significantly improved. As a result, energy expenditure and power consumption for air conditioning systems can be permanently reduced. This energy efficiency can completely eliminate the need to purchase expensive air conditioning systems.
Weather-resistant for exterior installations
The sun control film is weather-resistant and therefore ideal for laying on the outside of window panes. It was developed using the latest technology and has a specially hardened surface. The solar control film is therefore easy to clean with water and glass cleaning agent and has a long service life if properly cared for.
Technical and optical characterisitcs
| Material: | Weather-resistant polyester film, aluminum-coated, colored, scratch-resistant |
| Quality assurance: | ISO 9001:2008 certified manufacturing process |

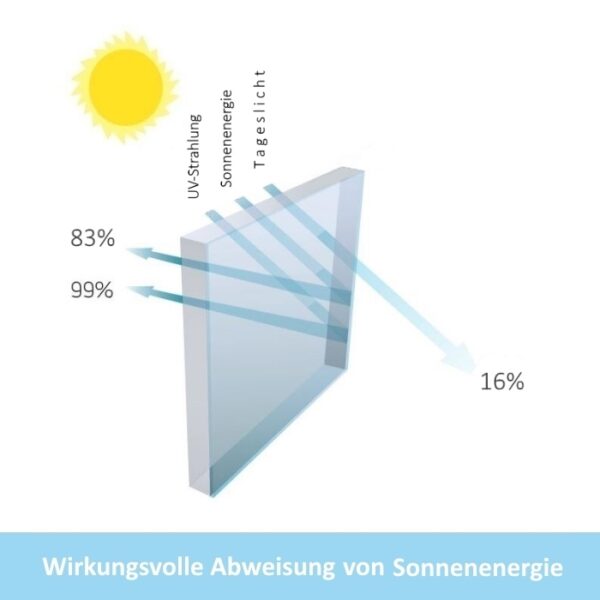

| Heat protection: | 83% heat rejection after applying the flat glass film |
| Daylight: | 16% light transmission, 99% UV block |
| Solar energy: | 9% transmission, 64% reflection, 27% absorption |
| G value: | 0.17 degrees of solar energy enter the room |
| Anti-glare: | The window film reduces sun glare by 82% |
*All values are manufacturer values and apply to single glazing
Long durability and manufacturer’s guarantee
The sun control film has a durability of 10 years or more when used outdoors on vertical glazing (normal Central European climate). When installed to slanted glazing outdoors, the durability is reduced accordingly due to the higher environmental impact.
Regardless of the long durability, a manufacturer’s guarantee of 4 years for vertical and 2.5 years for inclined glass surfaces is granted. The guarantee applies to peeling, yellowing and demetallization of the high-performance film if the edges of the film are sealed all around with silicone.
Retrofitting the window film in a few steps
The bubble-free retrofitting of the window film is done using the so-called wet adhesive process. Thoroughly clean the surface to be coated and spray it with some installation fluid. Remove the protective film on the back, spray the adhesive side and attach it to the window. Using a squeegee, smooth everything out from the middle without any bubbles and wipe dry, and you’re done. Any white discoloration of the adhesive will disappear within a few days.
Just shop the fitting accessories online
• Up to 2.5 sqm we recommend the DIY accessory set worth 3.90 euros. It is included free of charge.
• From 2.5 sqm just order the installation material foil size depending in our asseccories sortiment.
• Detailed installation instructions for installing the film are shipped with each delivery for free.
Additional information
| Weight | 1 kg |
|---|---|
| Installation | exterior |
| Purpose | sun control, privacy protection, glare reduction, uv-filter, spy mirror, energy saving |
| Applicability | single glazing (one pane) insulation glazing (two- or three panes), thermal insulation glazing (two panes with thermal insulation), restricted on solar control glazing (two panes) |
| Material | metallized polyester, REACH compliant |
| Optics | reflective |
| Design | highly mirrored |
| Film thickness | 0,069 mm |
| Surface | special hardened, easy to clean |
| Adhesive | polyacrylate, pressure sensitive, removable without residue |
| Cover | transparent polyesterfilm, removable |
| Temperature | during installation from +5°C to +40°C |
| Fire behavior | B – s1, d0 flame retardant according DIN EN 13501 |
| Roll width | 1,52 m width – 31,0 m length |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 2 years at 18-22°C and 45-55% relative humidity |
| Brand | von Kuester KG |
| Delivery time | 1-3 working days |
| EAN | 4403050192002 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
Download data sheet for free
The technical data sheet is available for free download here:
Sonnenschutzfolie-DIB-210 Compare products
Technical properties
Technical properties
Technical properties
Technical properties
Technical properties
Technical properties
Technical properties
Montage:
exterior
Montage:
exterior
Montage:
exterior
Montage:
exterior
Montage:
exterior
Montage:
exterior
Montage:
exterior
Optical properties
Optical properties
Optical properties
Optical properties
Optical properties
Optical properties
Optical properties
Farbe:
bronze
Farbe:
titanium
Farbe:
silver
Farbe:
silver
Farbe:
natural
Farbe:
titanium
Farbe:
titanium
Design:
highly mirrored
Design:
highly mirrored
Design:
highly mirrored
Design:
medium mirrored
Design:
not mirrored
Design:
highly mirrored
Design:
medium mirrored
Lichtdurchlass:
low
Lichtdurchlass:
low
Lichtdurchlass:
low
Lichtdurchlass:
medium
Lichtdurchlass:
medium
Lichtdurchlass:
low
Lichtdurchlass:
medium
Optik:
reflective
Optik:
dual reflective
Optik:
reflective
Optik:
reflective
Optik:
spectrally selective
Optik:
dual reflective
Optik:
dual reflective
Sichtschutz:
high
Sichtschutz:
very high
Sichtschutz:
high
Sichtschutz:
medium
Sichtschutz:
medium
Sichtschutz:
high
Sichtschutz:
medium
Solar properties
Solar properties
Solar properties
Solar properties
Solar properties
Solar properties
Solar properties
Lichtdurchlass:
low
Lichtdurchlass:
low
Lichtdurchlass:
low
Lichtdurchlass:
medium
Lichtdurchlass:
medium
Lichtdurchlass:
low
Lichtdurchlass:
medium
Lichtdurchlass Wert:
16%
Lichtdurchlass Wert:
8%
Lichtdurchlass Wert:
17%
Lichtdurchlass Wert:
33%
Lichtdurchlass Wert:
45%
Lichtdurchlass Wert:
19%
Lichtdurchlass Wert:
36%
Sonnenschutz:
very high
Sonnenschutz:
very high
Sonnenschutz:
very high
Sonnenschutz:
high
Sonnenschutz:
high
Sonnenschutz:
high
Sonnenschutz:
high
Sonnenschutz Wert:
83%
Sonnenschutz Wert:
83%
Sonnenschutz Wert:
81%
Sonnenschutz Wert:
66%
Sonnenschutz Wert:
69%
Sonnenschutz Wert:
69%
Sonnenschutz Wert:
57%
UV-Schutz:
99%
UV-Schutz:
99%
UV-Schutz:
99%
UV-Schutz:
99%
UV-Schutz:
99%
UV-Schutz:
99%
UV-Schutz:
99%
