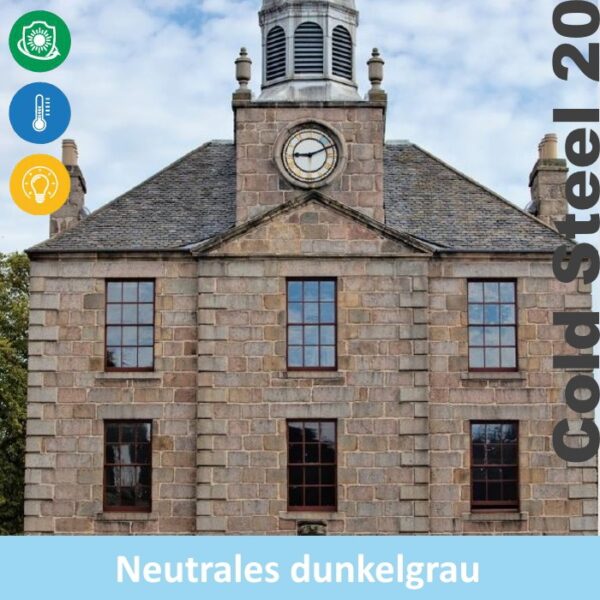

Sun control film Cold Steel 20 dark grey
35,90 €
- ✔️ Sun protection film with 70% heat rejection
- ✔️ Neutral dark grey tint according to U.S. patent
- ✔️ Panoramic view without annoying light reflections
- ✔️ Dark grey appearance for maximum sun control
- ✔️ Ideal for south-facing windows with lots of sun
- Description
- Additional information
- Reviews (0)
- Ordering
- Film sample
- Datasheet
Description
Ideal sun control for south windows in dark grey
The sun control film cold steel 20 dark grey is self-adhesive and is installed on the interior window side. It once installed to the window pane, provides lasting high sun protection and an excellent panoramic view. It is ideal for use on residential and commercial buildings with south-facing windows. The brightness on the south side compensates the loss of light caused by the sun control film ver well. Unpleasant glare and heat build-up when exposed to sunlight are significantly reduced without affecting the clear view of the outside. The Cold Steel film offers excellent solar energy rejection with a weak reflection for a subtle presence.
With 70% rejection of solar energy, the quality film ensures a very good reduction in heat development when installed indoors. Ongoing energy and electricity costs for building air conditioning can be saved permanently due to the lower utilization. The energy efficiency of the installed window glazing is sustainably improved.
Excellent UV-filter against premature fading
The window film is equipped with excellent UV protection against premature fading of the interior: 99% of aggressive UVA and UVB radiation are effectively blocked. The specially hardened film surface guarantees a long service life and easy cleaning with conventional glass cleaning agents.

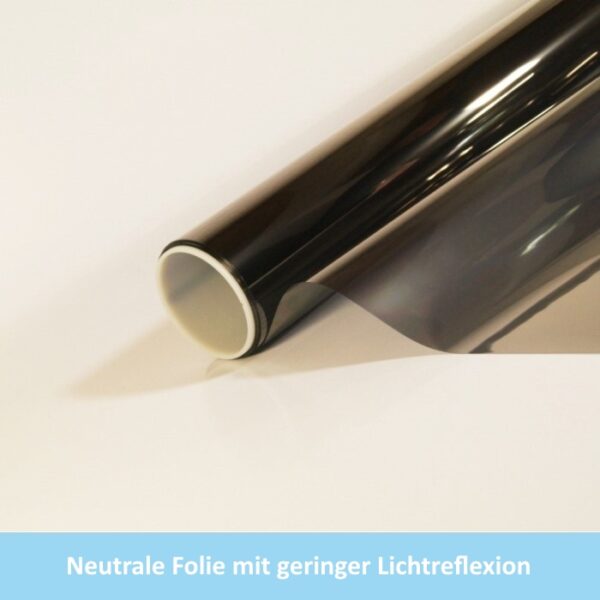

Neutral design – natural view & little reflection
✔ Manufactured according to a U.S. Thanks to the patented process, Cold Steel 20 retains its neutral color.
✔ When viewed from the room side, a neutral-looking dark grey tint of the panorama film is noticeable.
✔ The low reflections of the sun control film ensure a neutral appearance from the inside and outside.
Technical and optical detail informations
| Material: | Scratch-resistant polyester film with aluminum oxide coating, dark gray |
| Quality assurance: | ISO 9001:2008 certified manufacturing process |
| Heat protection: | 70% heat shielding after applying the window film |
| Daylight: | 22% light transmission, 99% UV protection |

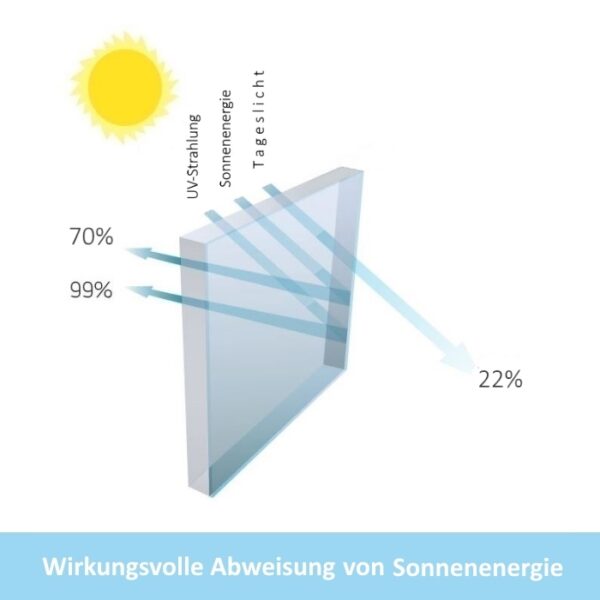

| Solar energy: | 14% transmission, 29% reflection, 57% absorption |
| G value: | 0.30 degrees of solar energy enter the room |
| Anti-glare: | The flat glass film reduces sun glare by 76% |
| Manufacturer’s warranty: | 10 years for peeling, yellowing, demetallization of the film |
*All values are manufacturer values and apply to single-pane glazing
Retrofitting the window film in a few steps
The bubble-free retrofitting of the window film is done using the so-called wet adhesive process. Thoroughly clean the surface to be glued and spray it with some installation fluid. Remove the protective film on the back, spray the adhesive side and attach it to the window. Using a squeegee, smooth everything out from the middle without any bubbles and wipe dry, and you’re done. Any white discoloration of the adhesive will disappear within a few days.
Just shop the fitting accessories online
• Up to 2.5 sqm we recommend the DIY accessory set worth 3.90 euros. It is included free of charge.
• From 2.5 sqm just order the installation material foil size depending in our asseccories sortiment.
• Detailed installation instructions for installing the film are shipped with each delivery for free.
Additional information
| Weight | 1 kg |
|---|---|
| Installation | interior |
| Purpose | sun control, privacy protection, glare reduction, uv-filter, energy saving |
| Applicability | single-pane-glazing, double-pane-glazing without thermal insulation |
| Material | metallized polyester, REACH compliant |
| Optics | neutral |
| Design | slightly mirrored |
| Film thickness | 0,070 mm |
| Surface | special hardened, easy to clean |
| Adhesive | polyacrylate, water activated, removable without residue |
| Cover | transparent polyesterfilm, removable |
| Temperature | during installation from +5°C to +40°C |
| Fire behavior | B – s1, d0 flame retardant according DIN EN 13501 |
| Roll width | 1,52 m width – 31,0 m length |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 2 years at 18-22°C and 45-55% relative humidity |
| Brand | von Kuester KG |
| Delivery time | 1-3 working days |
| EAN | 4403050032001 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
Download data sheet for free
The technical data sheet is available for free download here:
