Wingsafe Bird Strike Window Film – Black Dot Pattern
75,90 €
- 🕊️ Sustainable bird protection solution for buildings
- ⚫ Black dots in a regular grid pattern
- 🔒 Highly effective structure – tested in flight tunnel studies
- 🛡️ Licensed Wingsafe protection – highly effective
- 🪟 Suitable for all glass surfaces and window panes
- Description
- Additional information
- Reviews (0)
- Bestellen
- Folienmuster
Description

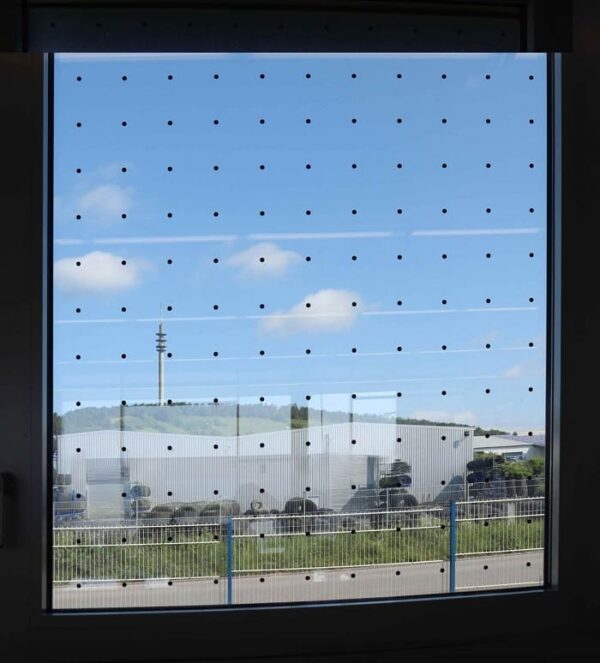

🕊️ Wingsafe bird strike window film with black dot pattern
The Wingsafe bird strike window film – black dot pattern is a self-adhesive window film designed to reduce bird collisions with glass on windows and glass façades. It was developed to make dangerous reflective glass surfaces visible to birds without significantly reducing visibility for people. The 11 mm black dots are arranged in a grid with a spacing of 76 mm between each dot.
The black dots arranged in a regular grid (Wingsafe design) interrupt reflections and clearly signal a solid surface to birds. This prevents birds from misinterpreting reflections as open flight paths. When installed correctly, up to 96% of bird collisions can be prevented.
The film is ideal for windows, glass façades, conservatories, office buildings, glass railings and public glass structures.
- 🕊️ Reliable bird strike prevention – clear visual marking for birds
- 👁️ Discreet appearance – maintains clear visibility for people
- 🪟 Easy retrofit – self-adhesive solution for existing glass surfaces
- 🏢 Versatile applications – suitable for residential and commercial buildings
- 💚 Wildlife protection – helps prevent bird strikes and unnecessary animal suffering
Special feature: The Wingsafe film uses a high-contrast black dot grid specifically designed to make glass surfaces clearly visible to birds and significantly reduce bird strikes.
🪟 Dot grid as an effective bird-safe glass marking
📐 Why a dense dot pattern significantly reduces bird collisions
For effective bird strike prevention, contrast, spacing and regular patterns are essential:
- ✔ Even markings signal a solid surface to birds
- ✔ The regular dot grid prevents birds from seeing a flight path through the glass
- ✖ Single bird silhouette stickers are usually ineffective
- ✖ Large unmarked glass areas remain invisible to birds
The Wingsafe bird strike prevention film follows this principle and is considered one of the most effective retrofit solutions for bird-safe glass.
📊 Technical & visual characteristics
| Applications: | Windows, glass façades, conservatories, glass railings, office buildings, public glass structures |
| Installation: | Install on the approach side – the side of the glass birds fly toward – to prevent interference from the glass’s own reflections. |
| Material: | Scratch-resistant polyester film, self-adhesive |
| Marking: | Black dots arranged in a structured grid |
| Durability: | Up to 15 years or more with proper care. |
| Warranty: | 10-year manufacturer’s warranty against peeling and discoloration on vertical glazing, 5 years on sloped glazing. |
*All values are manufacturer specifications and apply to single glazing in a Central European climate.
More variants & differences can be found in our bird strike prevention film buying guide – including information about dot spacing, operating principles and application areas.
🛠️ Installing bird strike prevention window film – simple & effective
The self-adhesive bird strike prevention film is installed using the wet application method. This allows easy positioning and bubble-free installation even without prior experience.
👉 Detailed instructions for proper installation can be found in our installation guide for window films. It is included free of charge with every order.
📦 Ordering & custom solutions
- 🎨 Custom sizes, designs & dimensions are available on request
- 🪟 For individual solutions we require the glass type and the size of the actual glass area
- 📞 Contact us by phone, email or via our contact form
We will be happy to advise you personally and provide a non-binding quotation at short notice.
Additional information
| Weight | 1 kg |
|---|---|
| Installation | exterior |
| Purpose | bird protection |
| Applicability | plane glass panes (u.a. single-, multiple- and insulation glazing, ESG tempered- and VSG laminated safety glass, TVG partially toughened glass) |
| Material | polyester, multilayer |
| Design | points |
| Film thickness | 0,125 mm |
| Adhesive | polyacrylate, removable without residue |
| Cover | siliconized polyester, removable |
| Fire behavior | B-s1, d0 flame retardant according DIN EN 13501 |
| Temperature | during installation from +5°C to +40°C |
| Quantity | linear meters, millimeter cuttings and rolls available |
| Storage | 3 years at 15-25°C and 50-60% relative humidity |
| Brand | von Kuester KG |
| Delivery time | 1-3 working days |
| EAN | 4282345540038 |
Only logged in customers who have purchased this product may leave a review.
Instructions: Ordering linear meters, cuttings & rolls
In just a few clicks you can decide whether you want to order linear meters, millimeter cuttings or whole rolls!
Shopping linear meters from the roll
Example: The film is available as linear meter from the roll in roll widths of 0.91 m, 1.22 m and 1.52 m. You need 2.50 linear meters from a 1.22 m wide film roll.
Step 1: Select the roll width “1.22 m” at “LINEAR METERS”.
Step 2: Enter “2.50” in the field left next to “Add to cart”.
Finally: Click on “Add to cart”. Done.
You buy 2.50 linear film meters in one piece with a width of 1.22 meters. Linear meters are cut individually from a roll and delivered as a short roll in one piece. You are billed for the linear meters ordered.
Ordering millimeter cuttingss
Please take the width and height of your window measured from rubber to rubber, minus 4 mm of leeway all around. Example: You have 2 windows sized 1.40 m wide and 2.00 m high. The correct cutting size then is 139,6 cm width x 199,6 cm height.
Step 1: Enter “139,6” at width and “199,6” at height at “CUTTINGS”.
Step 2: Enter “2” at “Add to cart”.
Finally: Click on “Add to cart”. Done.
You then buy 2 pieces of film cuttings with the desired size of 139,6 width and 199,6 cm height. The ordered film and € 5.00 for the cutting are billed.
Have whole film rolls delivered
Rolled goods (25, 31 or 50 linear meters in one piece depending on the film model) are whole film rolls. If you purchase whole rolls, you benefit from attractive volume discounts. To do this, please enter the desired numbers of roll pieces at WHOLE ROLLS. You also can send us an email to service@vonkuester.de. We will then send you an offer that you can then order. Cutting whole rolls to a specific roll width is also possible on request, please contact us.
Free film sample
If you wish we send you free film samples by post. This way you can easily test different window films before ordering. The sample is the size of an envelope (approx. 10 x 20 cm). It does not need to be returned after testing. Please fill in the fields below so that we know where to send the film sample.
